ANALISIS PERBANDINGAN NILAI KOEFISIEN PERMEABILITAS TANAH UJI LAPANGAN DAN UJI LABORATORIUM

Philip Chen, Gregorius Sandjadja Sentosa
| Abstract views: 1584 | views: 3220

Abstract

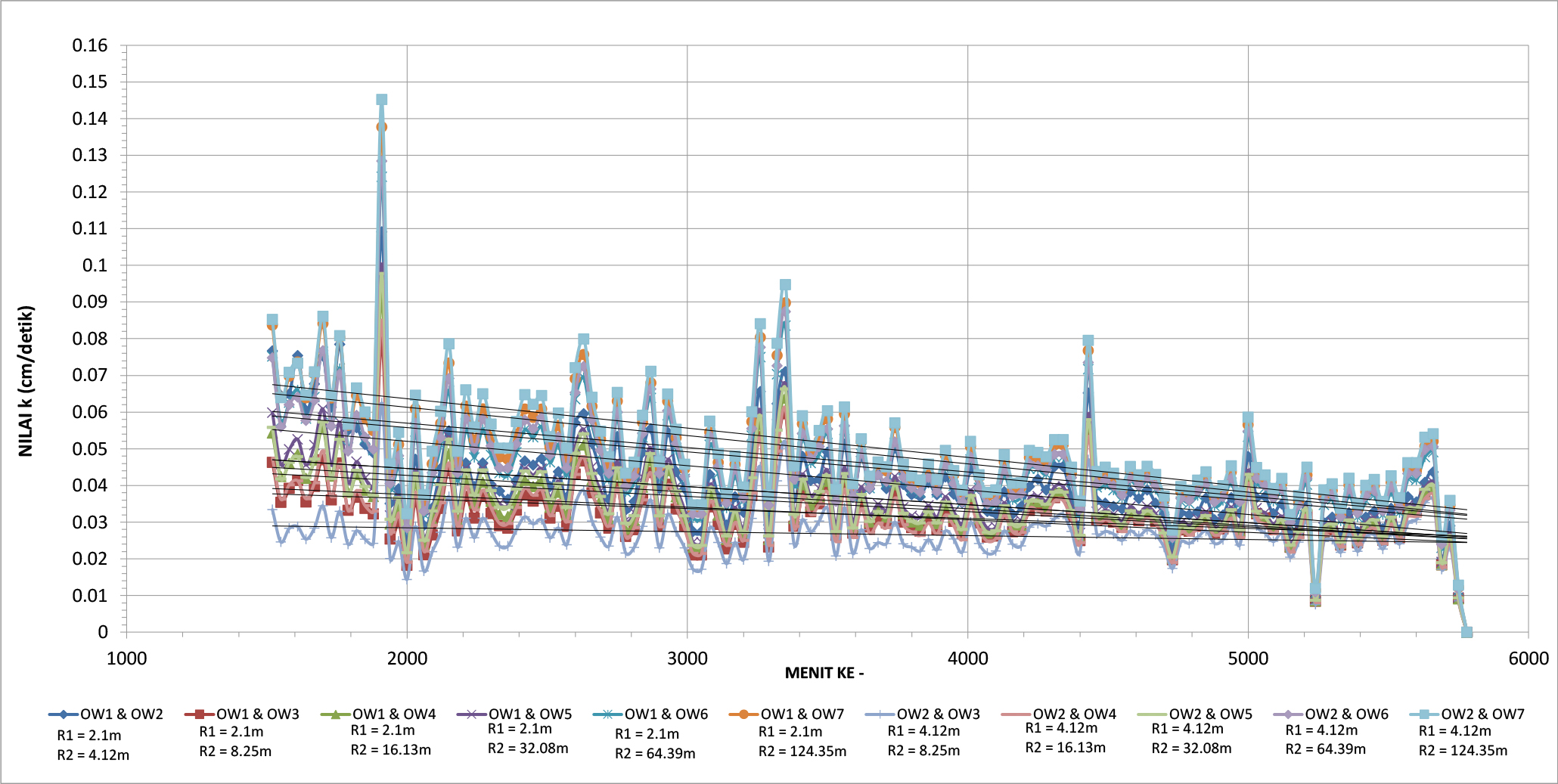

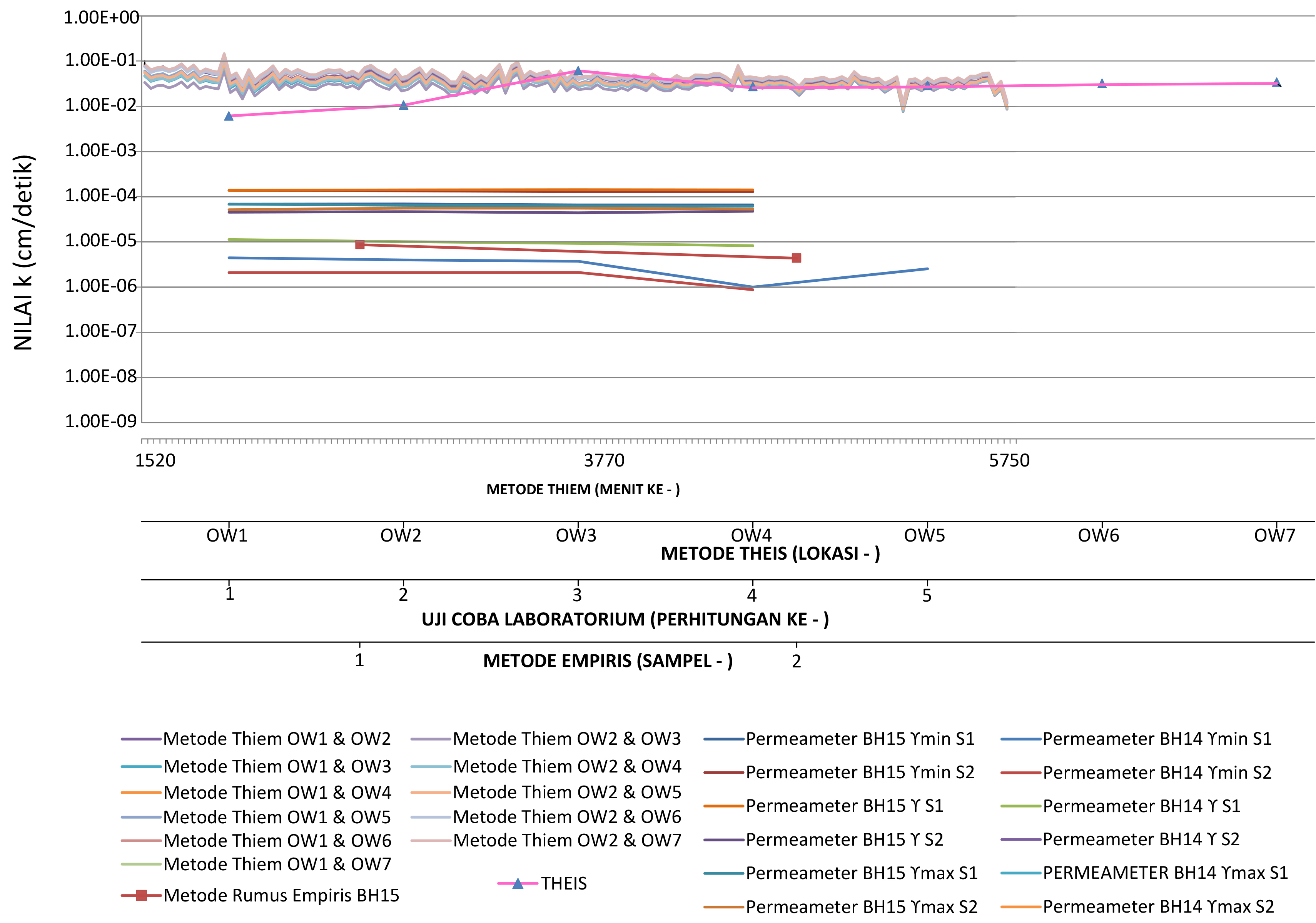

The coefficient of permeability (k) results of pumping tests are used as initial data to determine the rate of water seepage in the soil, determining the permeability capability of the soil can be done by measurements in the laboratory and in the field. In reality the permeability coefficient value of field test is not the same as the test in the laboratory. This final project will analyze the difference in value (k) obtained from field and laboratory tests in order to enrich the data in determining the value of permeability coefficient (k). The analysis uses Thiem and Theis method in analyzing the results of pumping tests. And using constant head permeameter to determine the value of the coefficient of permeability (k) in laboratory. From the analysis results obtained by the Thiem method, the permeability coefficient (k) obtained is in the range of  6,8x cm/sec - 2,8x cm/sec, and Theis method is obtained in the range of  6,03x cm/sec - 6,03x cm/sec. Meanwhile the results of the coefficient of soil permeability (k) by the laboratory tests using the constant head permeameter is in the range 1,43x  cm/sec - 8,76x cm/sec. And for calculations using the Hazen method the result is in the range 8,71x cm/sec - 4,35x cm/sec.


Abstrak

Nilai koefisien permeabilitas (k) hasil pumping test digunakan sebagai data awal untuk mengetahui kecepatan rembesan air di dalam tanah, penentuan kemampuan permeabilitas tanah dapat dilakukan dengan pengukuran di laboratorium dan di lapangan. Dalam kenyataannya nilai koefisien permeabilitas uji lapangan biasanya tidak sama dengan uji di laboratorium. Penelitian ini akan menganalisa perbedaan nilai (k) yang didapat dari uji lapangan dan uji laboratorium guna memperkaya data dalam menentukan nikai koefisien permeabilitas (k). Analisa pada penelitian ini menggunakan metode Thiem dan metode Theis dalam menganalisa hasil pumping test pada lapangan. Dan menggunakan constant head permeameter sebagai alat menentukan nilai koefisien permeabilitas (k) pada laboratorium. Serta menggunakan metode rumus empiris Hazen untuk menentukan nilai koefisien permeabilitas (k) berdasarkan ukuran butiran. Dari hasil analisis yang diperoleh dengan metode Thiem nilai koefisien permeabilitas (k) yang didapat berada pada rentang  6,8x m/detik - 2,8x cm/detik, dan dengan metode Theis didapat pada rentang 6,03x cm/detik - 6,03x cm/detik. Sedangkan hasil uji laboratorium menggunakan permeameter constant head mendapatkan hasil nilai koefisien permeabilitas tanah (k) pada rentang 1,43x  cm/detik  -   8,76x cm/detik. Dan didapat hasil 8,71x cm/detik - 4,35x cm/detik untuk perhitungan menggunakan metode Hazen.

Keywords

Pumping Test; Koefisien Permeabilitas Tanah; Metode Thiem; Metode Theis; Constant Head

Full Text:

PDF

References

ASTM Standard D2434-68. Standard Test Method for Permeability of Granular Soils (Constant Head). Pennsylvania: ASTM International, 2006

Bowles, J.E. Physical And Geotechnical Properties Of Soil. Singapore: Mc-Graw Hill, 1979.

Das, B.M. Advanced Soil Mechanics. New York: Taylor & Francis, 2008

Hubbert, M.K. “Darcy's Law And The Field Equations Of The Flow Of Underground Fluids”. Hydrological Sciences Journal. vol. 2, no. 1, 1957, pp. 23-59.

Kruseman, G.P. and N.A. de Ridder. Analysis and Evaluation of Pumping Test Data. Second Edition, ILRI Publication 47, International Institute for Land Reclamation and Improvement (ILRI), The Netherlands: Wageningen, 2000.

Lopez, O.M., et al. “Method of Relating Grain Size Distribution to Hydraulic Conductivity in Dune Sands to Assist in Assessing Managed Aquifer Recharge Projects: Wadi Khulays Dune Field, Western Saudi Arabia”. Water, vol. 7, 2015, pp. 6411-6426.

Mays, L.W. Ground and Surface Water Hydrology. New York: John Wiley and Sons, 2012.

Theis, C.V. “The relation between the lowering of the piezometric surface and the rate and duration of discharge of a well using groundwater storage”. Trans. Amer. Geophys. Union, vol. 16, no. 5, 1938, pp. 19-524.

Thiem, G. Hydrologische Methoden. Gebhardt, Leipzig, 56. 1906.

Ubani, C.E., G.O. Ani, and T.T. Womiloju. “Permeability Estimation Model From Grain Size Sieve Analysis: Data Of Onshore Central Niger Delta”. European Journal of Engineering Research and Science, vol. 3, no. 12, December 2018, pp. 119-125.
